MyIAD OBD GPS Tracker (MYT-OBD1)

$39.00

Real time tracking OTA OBD port GPS tracker , plug and play Geo-fence, Vibration alarm, displacement alarm, and low-power alarm etc. Built-in Watchdog timer (WDT) Supports DC 9~ 36V wide supply voltage. Built-in 40mAh lithium-polymer battery of high/low temperature resistant Plug off alarm Total enclosed design, difficult to be tampered by strangers.

Add to Wishlist
Compare
SKU: MYT-OBD1 Category:
Description

Smallest OBD Port GPS Tracker (Plug & Play)

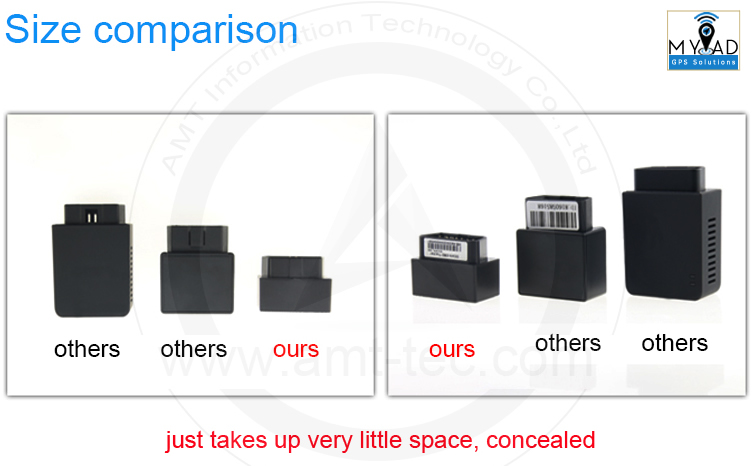

MYT-OBD is the smallest OBD Tracker in the market, supports all cars as long as the car has OBDII port.  MT-OBD is basic GPS Tracker , its wide working voltage can protect the PCB well.



Specifications:

Items Value
GSM frequency 850MHz/900MHz/1800 MHz/1900 MHz
GPS chip Compatible with u-blox/BDS
GPRS Class 12,TCP/IP build in GSM MODULE
Sensitivity of GPS -163dBm
GPS Accuracy 10m (open sky)
Cell ID Accuracy 50-2000m
Speed Accuracy 0.1m/s
Warm Start-up 2s (open sky)
Cold Start-up ≤35s (open sky)
A-GPS Start-up ≤25s (open sky)
3D G-Sensor ±8g(All Direction)
Backup Battery 40mAh/ 3.7V
Storage Temperature -40~+85゜C
Operating Temperature -20~+70゜C
Humidity 20%~80%RH
Operating Voltage Range 10V~36V DC
Operating Current < 50mA
Sleeping Current < 3.5mA
Dimensions 45.2*25.1*32mm
Net Weight 28g
Additional information
Weight 0.062 lbs
Dimensions 1.77 x 0.98 x 1.26 in
