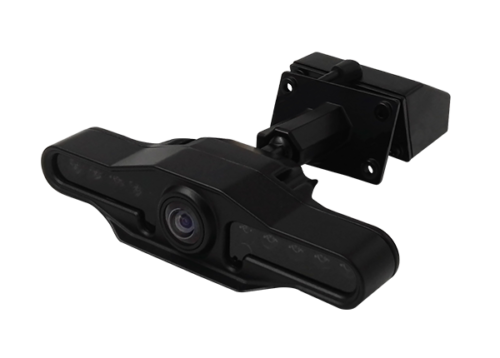

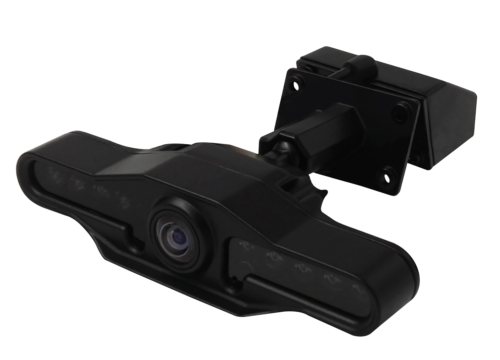

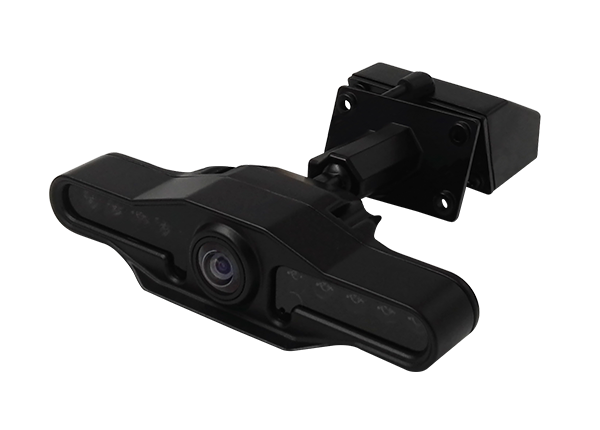

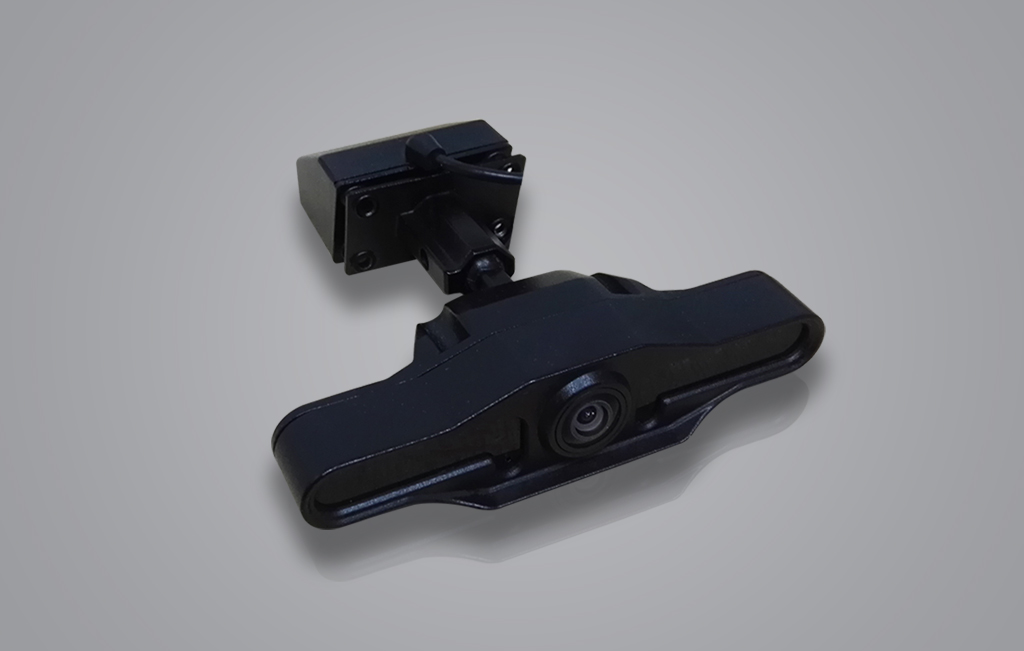

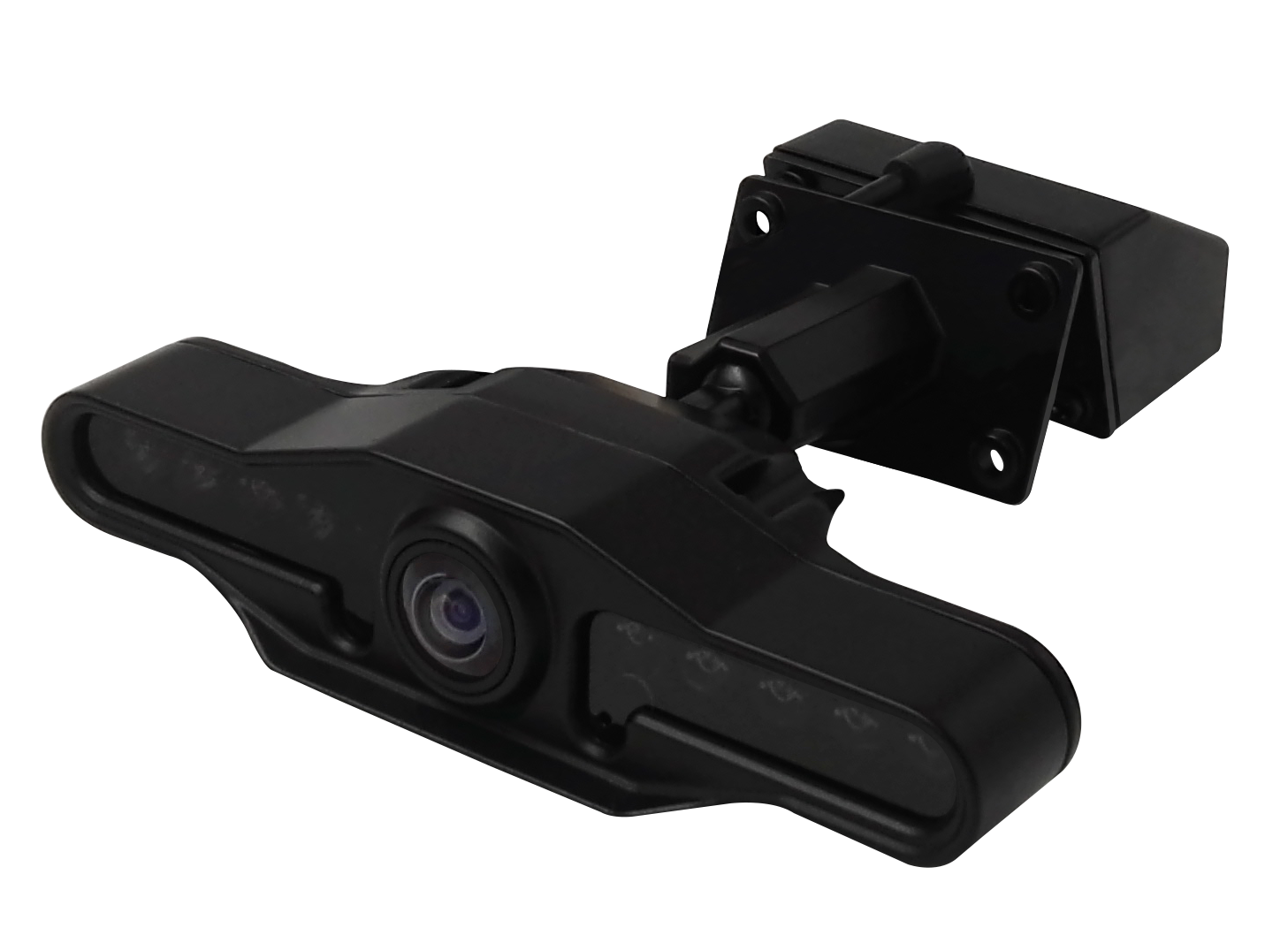

MyIAD HD Dual View Camera

Model JC12-MC818
Image Sensor
1/3″ SONY Super HAD CCD
TV System PAL/NTSC
Horizontal Resolution 700TVL
Lens optional 2.1mm & 2.8mm dual lens
Effective Pixel Arrey PAL: 976Hx582V; NTSC: 976(H) x 494(V)
Min illumination 0.1 Lux at F1.2 (CDS audio control On)
S/N Ratio More than 48 dB, (AGC Off)
WDR N/A
IR &Infrared LED Range 10pcsΦ8 IR 940nm LED,5m
Audio fuction Support (2.1mm)
Horizontal angle of view 2.1mm (130°） & 2.8mm (92°)
Tilt Adjusting N/A
Power Supply 12V DC ±10%
Dimensions 126x30x100mm
Net Weight 200 g
Weatherproof/Water Proof N/A
Operational Temperature -20 ~ +50 ° C
Operational humidity ＜95%
vedio interface Aircraft Round Connector Plug
